V-770 UV-Visible/NIR spectrophotometer



The V-770 UV-Visible/NIR spectrophotometer features a unique single monochromator design for maximum light throughput with excellent absorbance linearity.

A PMT detector is used for the UV to visible region and a Peltier-cooled PbS detector for the NIR region.



* Spectra Manager™ CFR (for 21 CFR part 11 compliance) is available as an option.









Operating Systems

The V-770 UV-Visible/NIR spectrophotometer is operated using Spectra Manager™ Suite, the innovative cross-platform spectroscopy software, is compatible with Windows 10 Pro and Enterprise operating systems (Home is not supported).

For simple operation, the handheld iRM has a great look and feel with a color touch-sensitive screen. Data can also be downloaded to Spectra Analysis on a PC further PC data processing.

The V-700 Series has a growing list of software applications for both Spectra Manager™ and iRM. If you have an application which you don’t see listed, please let us know as we may already have it or we can prepare an application designed specifically for your requirements.

Both interfaces offer full system control and advanced data processing. Spectra Manager™ CFR is the 21 CFR part 11 compliant version of software and is available as an option.



System Features


Wavelength Range from UV to NIR

The V-770 measures the wavelength range of 190 to 2700nm (option 3200nm). The single monochromator design offers a significantly higher energy throughput than a double-monochromated design resulting in a better S/N ratio over the entire spectral range, even with narrow spectral bandwidth. The gratings and detectors switch-over can be set to change  automatically between 800-900nm.

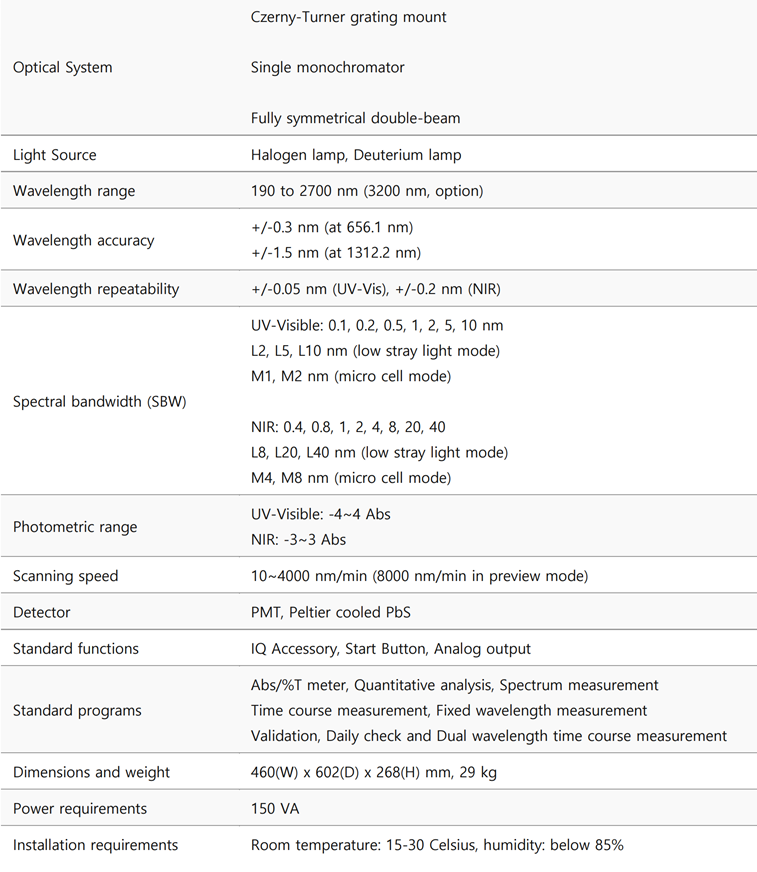

Specification
