[V-760] UV-Visible Spectrophotometer

JASCO | UV-Visible Spectrophotometer



V-760 UV-Visible Spectrophotometer



The V-760 UV-Visible spectrophotometer includes a double monochromator for exceptional resolution with extremely low stray light (0.00008 %) for more accurate measurement over the widest photometric range (up to 8AU). The V-760 provides excellent sensitivity for diffuse reflectance or transmittance of solid and liquid samples using an integrating sphere. For high resolution measurements, such as gas and vapor phase spectroscopy, the spectral bandwidth can be set as narrow as 0.1 nm. Extended photometric linearity up to 8 Abs enables measurement of highly absorbing samples and is also useful for measurements of optical material with transmission characteristics that approach 0 % T.





* Spectra Manager™ CFR (for 21 CFR part 11 compliance) is available as an option.





Operating Systems

Spectra Manager™ Suite, the innovative cross-platform spectroscopy software is compatible with Windows 7 Pro (32- and 64-bit configurations) and Windows 8.1 operating systems. Spectra Manager™ CFR is the 21 CFR part 11 compliant version.

For simple and routine operation, the handheld iRM has a new look and feel with a color touch-sensitive screen. Data can also be downloaded for portability and further PC data processing.

The V-700 Series has a growing list of software applications for both Spectra Manager™ and iRM. If you have an application which you don’t see listed, please let us know as we may already have it or we can prepare an application designed specifically for your requirements.



System Features


Excellent Optical Performance

High throughput optics combined with the latest electronic design provide excellent sensitivity and stability for a wide range of sample measurements.

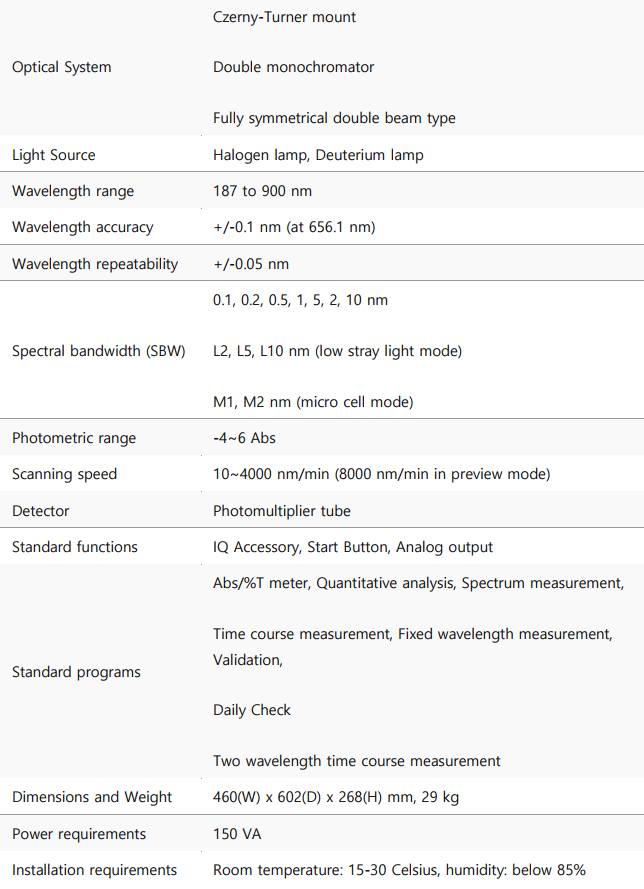

Specification
