JASCO | Spectra Manager™ Software Suite
JASCO has developed a unique and powerful, cross-platform Windows® software package to control the widest range of optical spectroscopy instrumentation. Spectra Manager™ is a comprehensive lab companion for measuring and processing data, eliminating the need to learn multiple software programs and allowing data from many instruments to be analyzed and displayed together on the same platform
1. Introduction of functions
JASCO adopts Wiley KnowItAll as JASCO Spectroscopy edition.
· Microsoft Windows 10 Professional or Enterprise
· 21 CFR part 11 compliance
· Validation for GxP
· Control of all JASCO spectroscopy instruments
· Control of multiple instruments from a single PC
· Analysis of many types of spectral data in a single user interface
· Users only need to be familiar with a single software package
· Flexible data display with publication quality printing
· Supports standard data formats such as ASCII, CSV, text and J-Camp for export to other software packages (Excel, Word, etc.)

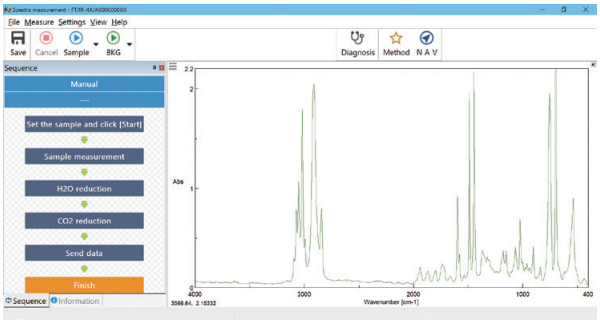

Instrument control
Drivers are included to control each spectroscopy instrument and parameter dialogs allow easy editing of pre-saved parameter fi les. Data acquired from each instrument is automatically loaded into the analysis program to free up the PC and control software to acquire more data during post-acquisition processing. Each instrument driver also has its own dedicated application for instrument hardware diagnostics and validation.
Flexible display features
User-friendly features include overlay printing in colors and patterns, autoscale mode, and style and font, as well as customized toolbars.
Data processing and spectral analysis
View and process multiple types of measurement data fi les (UV/Vis/ NIR, FTIR, Raman, Fluorescence, CD) in a single window, using a full range of data processing functions. Features include arithmetical operations, derivatives, peak detection and processing, smoothing, and baseline correction

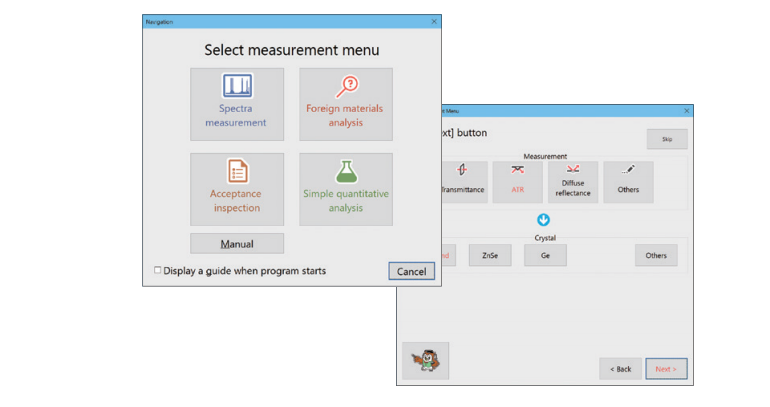

Navigation function
The navigation function allows even those who are unfamiliar with IR analysis to perform measurements in the same way as experts. Measurement parameters suitable for your measurement purpose can be set by selecting menu according to the navigation.

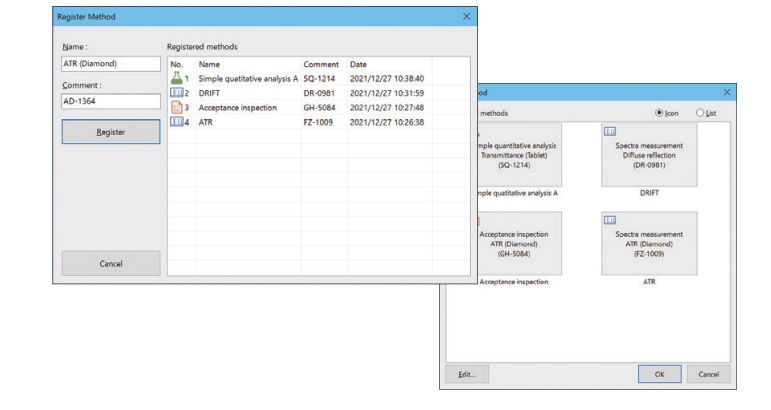

Method function
Registering frequently used measurement parameters in the method, you can perform the measurement by just selecting the target method from the next time.
Report Publishing
JASCO Canvas allows users to create layout templates of spectral data and results to meet individual reporting requirements.
KnowItAll Spectra Search Program
JASCO adopts Wiley KnowItAll as JASCO Spectroscopy edition.
· Wiley’s original 12,600 data and JASCO’s original 400 data is included as the standard package
· Multi-component search function that can search for a mixture sample of up to 5 components
· Supports for functional group analysis of infrared, Raman, and polymer infrared
· Multi-techniques that can be searched simultaneously with the Raman spectra
· ID expert function that executes a spectral search, mixture search, and functional group search at the same time
· Database provided by Wily (approx. 264,000 IR spectra) can be added

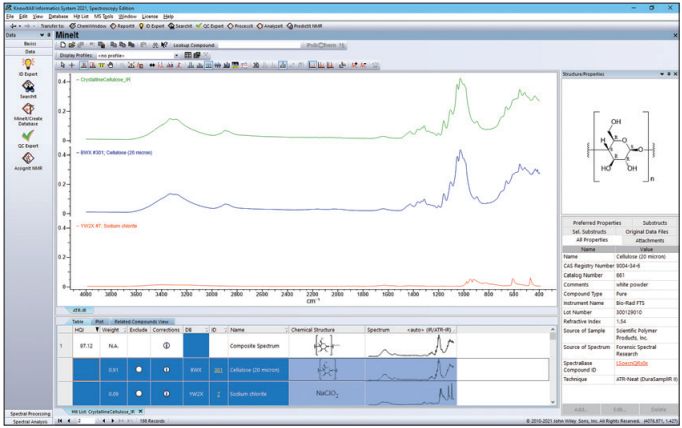

1. Multi-component
Identification of the spectrum about each component from unknown sample containing up to 5 components. The good search algorithm makes it possible to search in a short time.

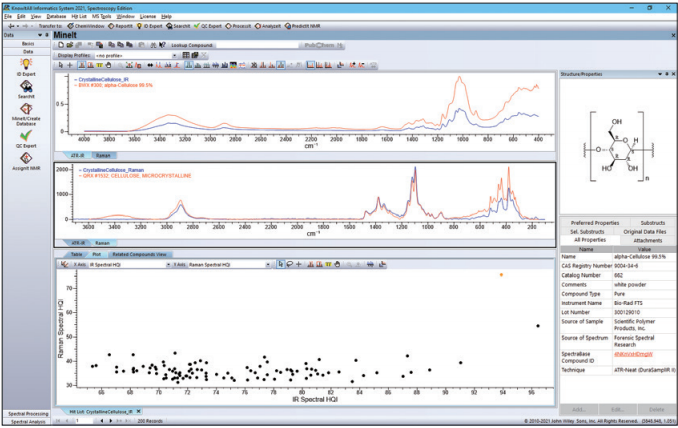

2. Multi-technique
Simultaneous search function for IR and Raman spectra about the same sample and plot function of the hit rates of each search result against each other.

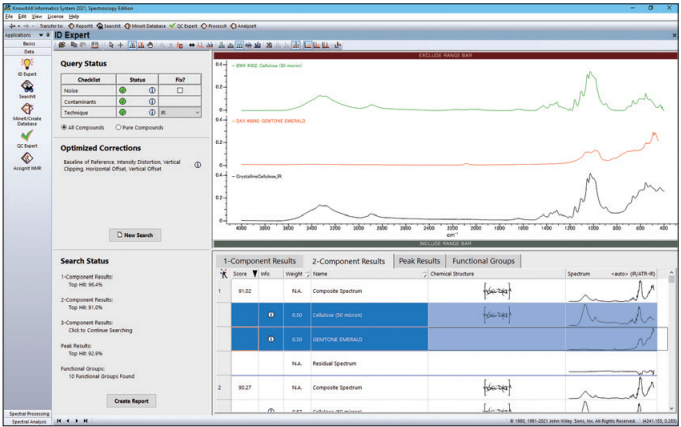

3. ID expert
Spectral search, mixture search, peak search, and functional group search are all performed automatically, providing important clues for analysis of unknown samples.

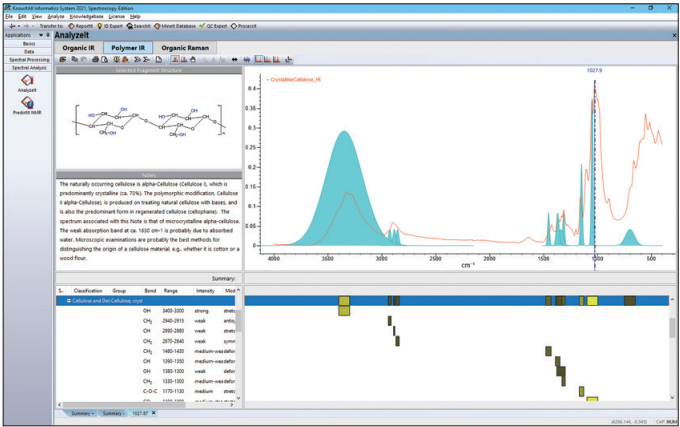

4. Functional group analysis support
Search for the peak of the spectrum by comparing it with the information of the functional group registered in the database. Supports functional group analysis for IR/Raman, IR polymer materials.

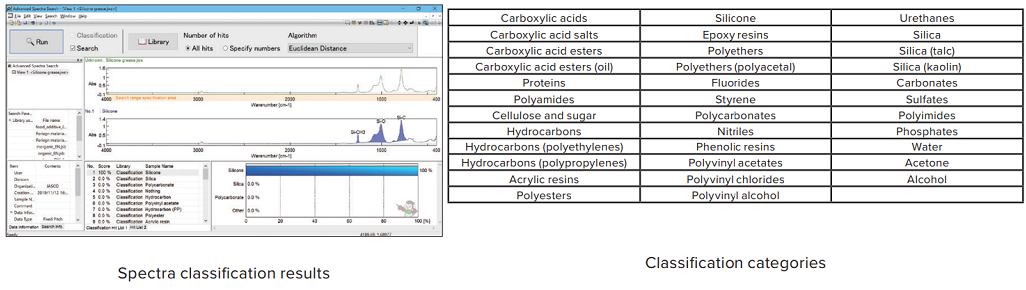

ADSS-4000 Advanced Spectra Search program
Spectra search support program makes it possible for anyone to perform spectral analysis like an expertise operator. An epoch-making search program that uses machine learning techniques to perform classification without using a database. It has the function of classifying the spectrum of an unknown sample into 35 categories and the function of searching using a data library (approx. 600 data), and both two functions can be executed at the same time.
