FT/IR-6X
FT/IR-6X
The FT/lR-6X spectrometer offers a highly configurable optical system applicable to virtually any FTIR application, from simple Mid IR measurement to more complex analysis in the farthest reaches of the electromagnetic spectrum. Research-based measurements are easily performed on the FT/lR-6X spectrometer with options such as full-vacuum, gold-coated optics, rapid & step scan and FT-Raman for more advanced experiments.
FT/lR-6X is a powerful FTIR spectrometer for research application, with an excellent signal-to-noise ratio (47,000 : 1) and high resolution (0.25 cm-1). It has the capability of extending the measurement wavenumber range (25,000 to 20 cm-1), and also has the option of applying the IR measurement under vacuum conditions, FT/lR-6X with superior performance, functionality and fl exibility providing the optimal solution.
Systems Features
Interferometer
High-quality FTIR measurements start with the precision and stability of the interferometer. That is why the FT/IR-6X and FT/IR-8X spectrometers utilize a Michelson interferometer with corner-cube mirrors for permanent alignment to prevent light-path deviation, eliminating the need for dynamic alignment. Since the interferometer housing has excellent sealing property, it protects the inner optical components, and improves their lifetime. Reliable measurement for a long period is available by using a high luminance ceramic light source with a long lifetime, a DLATGS detector with temperature control and a moisture-resistant KRS-5 window.
Vacuum
When measuring in the IR range, eliminating the effects of water vapor in the instrument is extremely important for obtaining high precision data. Although purging with dry air or nitrogen gas is the conventional solution to this problem, the FT/IR-6X and FT/IR-8X have options for a full or partially evacuable optical system. This system can be used for performing low ppb-level water vapor monitoring, thin-film measurement and dilute solution measurement. Where measurement across wide spectral regions is required, automatic window and/or beam-splitter exchange can be included for uninterrupted spectral acquisition.

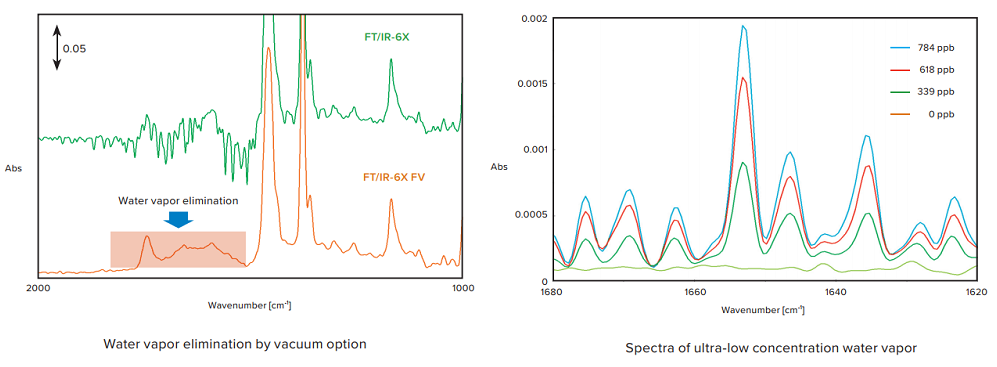

Since the vacuum option enables the influence of the atmosphere to be removed effectively compared with the purge option, it enables weak peaks to be detected and the performance of Far IR measurement with high accuracy. The fi gure below shows the spectra of ultra-low concentration water vapor. Vacuum option is a powerful tool to monitor low concentration gas (less than ppm) and to measure thin film.
High Specification
Excellent signal-to-noise ratio (47,000 : 1) and high resolution (0.25 cm-1)
Powerful Data Analysis

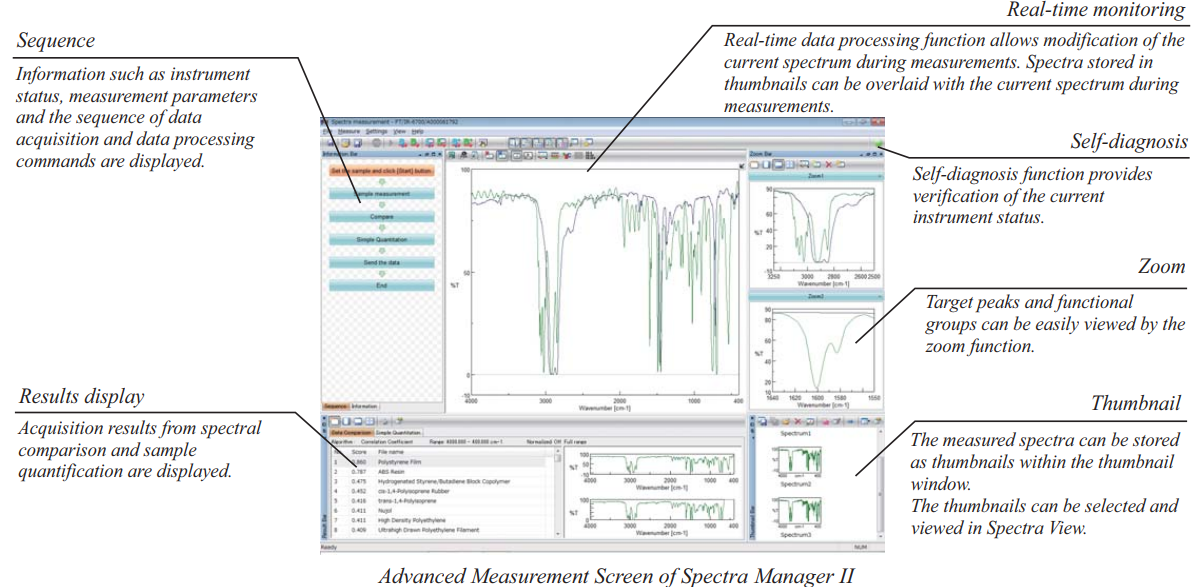

The FT/IR-6X is controlled by Spectra Manager™ cross-platform software. Spectra Manager™2.5 includes various capabilities including Spectra measurement, Quick-Start, spectral comparison and quantitative analysis as standard functions. The sample measurement screen can be customized according to user requirements and the customized screen and parameters can be saved for future use (User Adaptive Software capability).
Real-Time Data Processing
The data collection/processing sequence can be defined to include several data manipulation commands, activated as the spectral data is collected. The final results after all processing commands are completed are displayed as the final spectrum.
