JASCO | Fluorescence Microplate Reader

1. FMP-125 fluorescence Microplate Reader

he FMP-125 fluorescence microplate reader can be used with the FP-8350 or FP-8550.

Four standard measurements include Spectra Measurement, Quantitative Analysis, Time Course, and Fixed Wavelength. Quantitation. Time Course Measurement can also be used to measure parallel kinetics. Options include temperature control (including low temperature)

· Specifications

Compatible plates	96 and 384 well microplate (SBS standard)
Measurement time	1 min/ per plate (96 wells fixed wavelength under specified conditions)
Minimum sample requirement	80uL per well (96 well plate)
Photometric Reproducibility	+/- 3%
Optional Accessories	Constant temperature plate holder
Temperature Control	Heating system
Temperature Control Range	RT + 10 to 50 deg C

2. ASU-110 Autosampler Unit

For high throughput unattended operation, the autosampler is combined with a syringe pump or sipper, and flow cell.

Up to 192 liquid samples can be measured on all FP-8050 models, with various rack options that can be used with microplates, test-tubes and/or vials.

· Optional Racks

Rack Type	Compatible Test-tube and Vials	Max. Number of Samples
SRA-111 15 mm OD test tube	15 mm OD x 105 mm L 10 mL 100 pcs/set	100
SRA-112 13 mm OD test tube	13 mm OD x 100 mm L 7 mL 100 pcs/set	100
SRA-113 12 mm OD test tube	12 mm OD x 105 mm L 5 mL 100 pcs/set	150
SRA-114 10 mm OD test tube	10 mm OD x 90 mm L 3 mL 100 pcs/set	150
SRA-118 Vial	Screw cap vial 2mL 500 pcs/set	120
SRA-116 Microplate	96 well microplate, 250uL	192
SRA-117 Constant temperature microplate	96 well amplification, plate 250uL	192

JASCO | Sample Loading and Washing Options

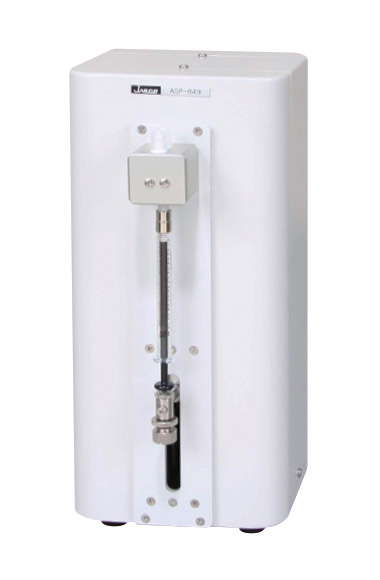

1. ASP-849 | Syringe Pump

Use to take small samples from the autosampler.

The ASP-149 can be used with syringe volumes of 1.0. 2.5, 5.0, and 10.0 mL and has a reproducible volume delivery better than ±1%.

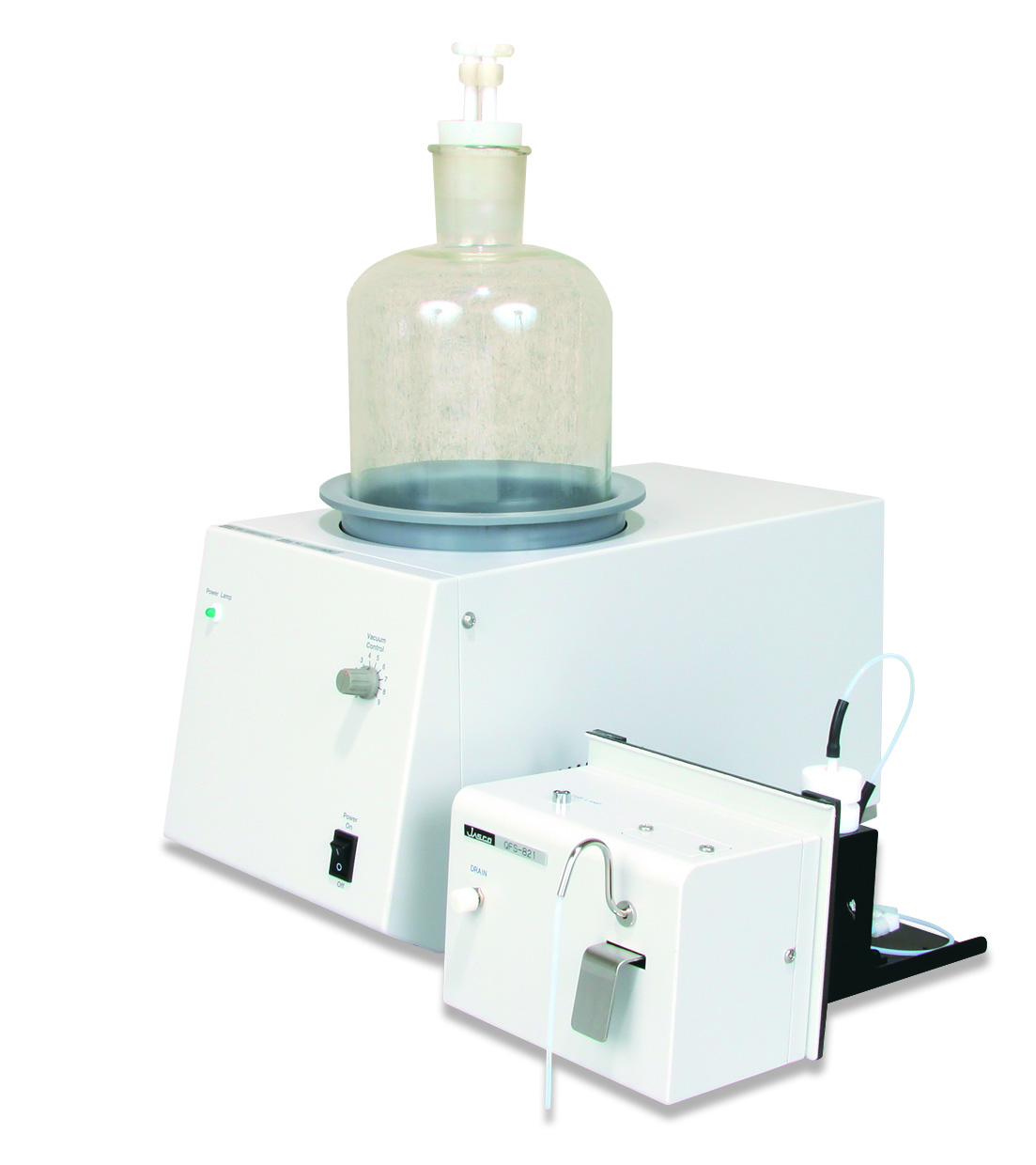

2. QFS-821 | Vacuum Sipper

High speed sipper. Suited to more viscous samples, up to 450 samples can be measured per hour.

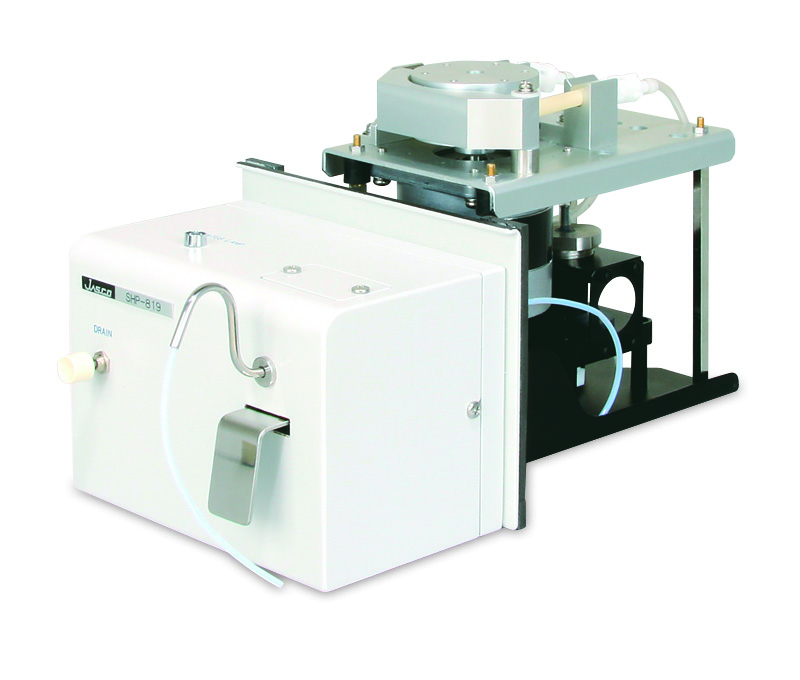

3. SHP-819 | Peristaltic Sipper

Sample can be recollected and up to 360 samples can be measured per hour.

4. AWU-828 | Washing Unit

Optional washing unit for use with QFS-122 and SHP-120.
